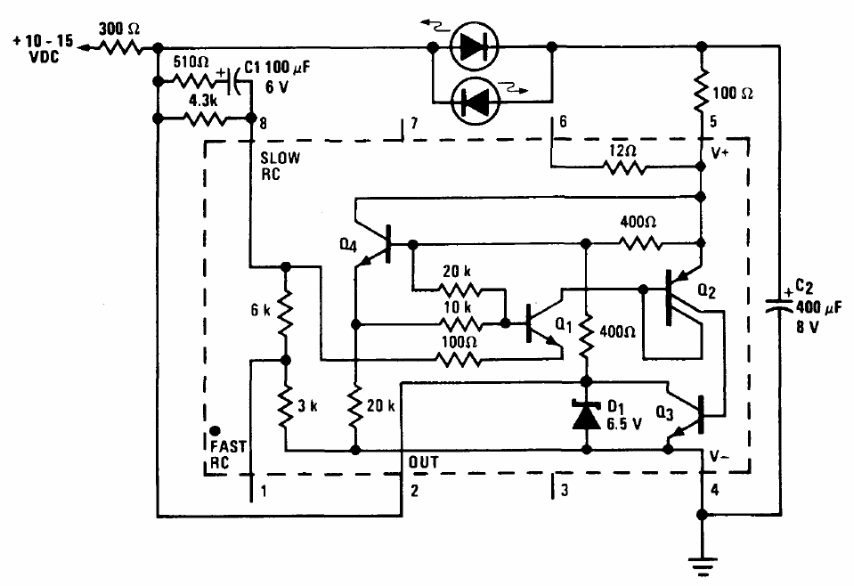

The circuit shown in the figure makes use of an LM3909, a low consumption and low voltage IC. The circuit supplies two LEDs alternately, which may be of different colors. We found this application in a documentation from National Semiconductor.
