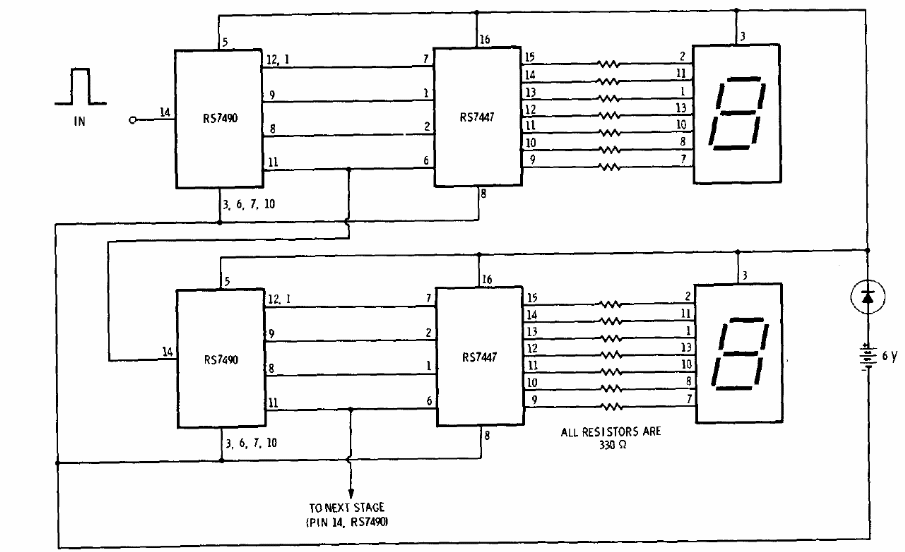

This circuit was obtained in a Radio Shack documentation from 1977. It consists of a didactic counter up to 99, which can be excited by pulses of a 555 or another oscillator. The displays are common anode, and the supply must be made with a voltage of 5 V. The circuit can be expanded to a greater number of digits.
| Clique na imagem para ampliar |
