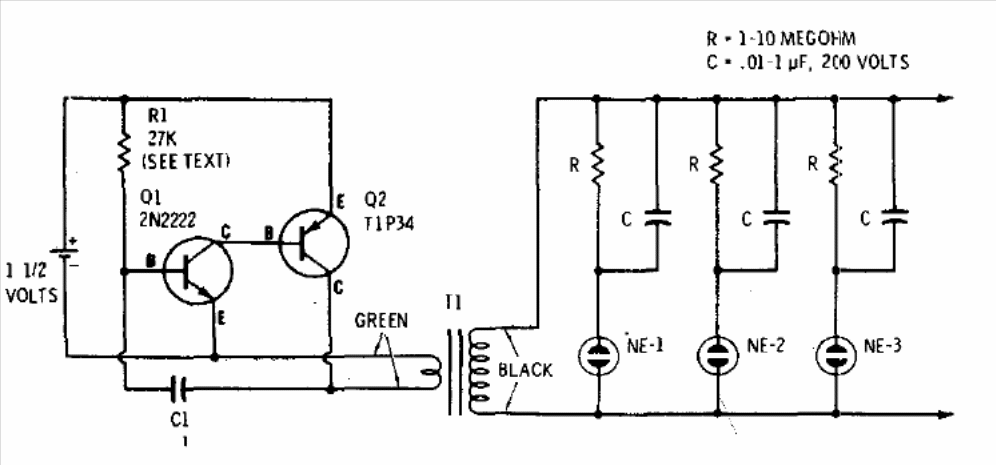

This circuit causes neon lamps to flash randomly from a low voltage supply (1.5 to 3 V). The transformer can be a small power transformer with 6 V secondary and 50 to 200 mA current. The speed of the effect depends on the capacitors and resistors next to the neon lamps.
