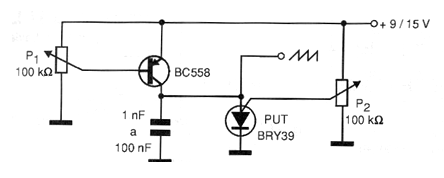

The circuit shown in the figure uses a programmable unijunction transistor (PUT) of the BRY39 type and can generate frequencies between a few hertz and a few hundred kilohertz. The supply is from 9 to 12 V and in the P2 trimpot the trigger point and even the linearity must be adjusted. The frequency must be adjusted in P1.
