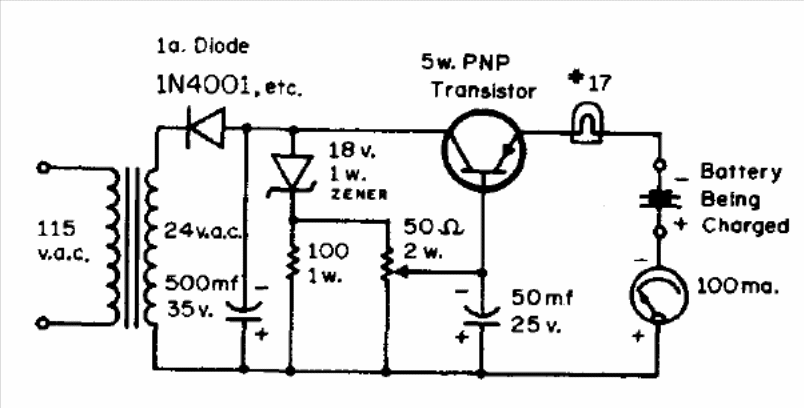

Nicad Charger (CB13550E)

This circuit is from 1973 documentation. The transformer has 500 mA of current and the transistor can be the TIP32 mounted on a heat radiator.

| Clique na imagem para ampliar |

Triple 5 V Numitron power supply (CB8673E)
This 1969 Electronics World power supply has 5 V to power digital circuits and a 170 V output for...
Current to frequency converter (CB9604E)
Found in a manufacturer documentation from the 90s, this circuit makes use of period components. The...
Chess game timer (CB7084E)
This RCA circuit provides timing intervals from 5 to 120 seconds. The components are of the time,...
