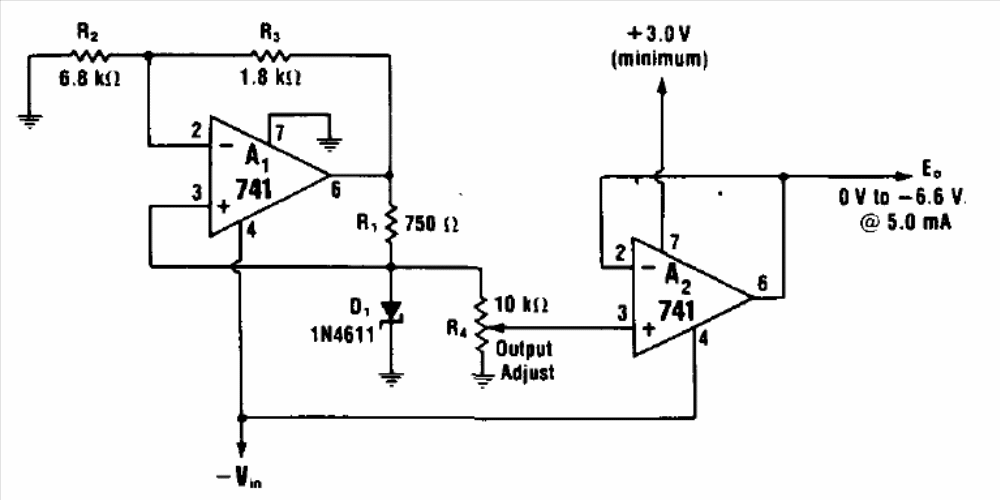

Two operational amplifiers are used in this source obtained in an American documentation (cookbook) from 1974. The circuit can be used as a voltage reference or even to excite a power stage. The circuit does not need a symmetrical source.
| Clique na imagem para ampliar |
