Logic level shifter (CB7254E)

Details
Written by: Newton C. Braga

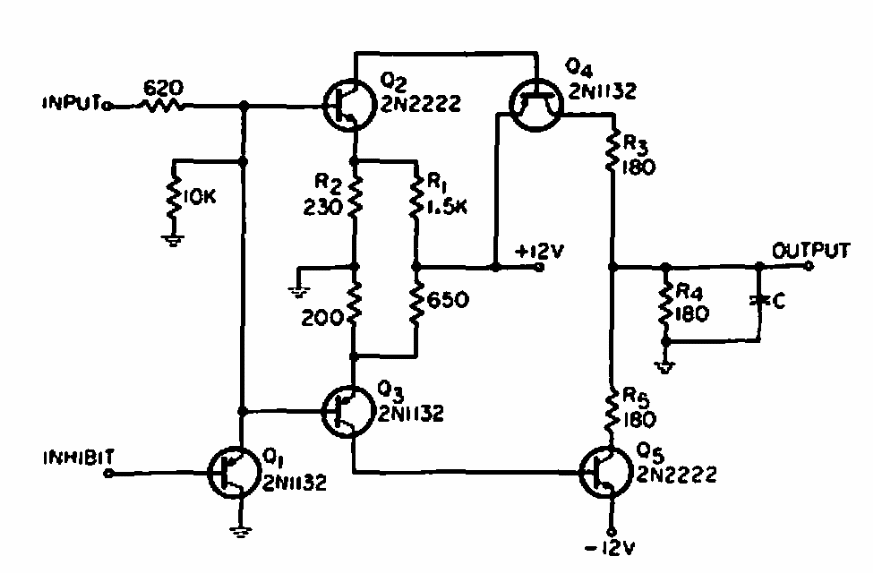

     This circuit was found in a 1966 EEE. What it does is it converts the logic levels of 0 V and +4 V into -6 V and +6 V. Some older type transistors can be replaced by modern equivalents.
