1 kHz filter (CB6719E)

Details
Written by: Newton C. Braga

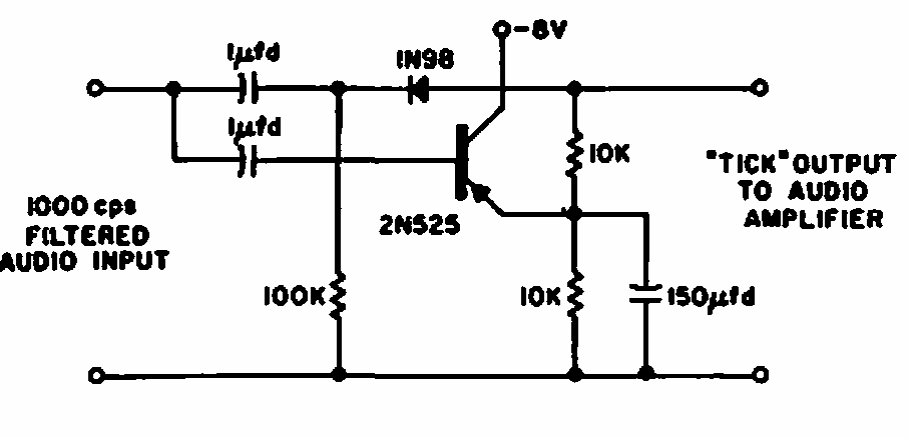

    Originally designed for WWV (Standard Time Station) signals, it lets 1 kHz tones pass by rejecting the 440 and 600 Hz tones emitted by the station. The circuit is from a 1964 Electronic Design.
