Signal Switch (CB6676E)

Details
Written by: Newton C. Braga

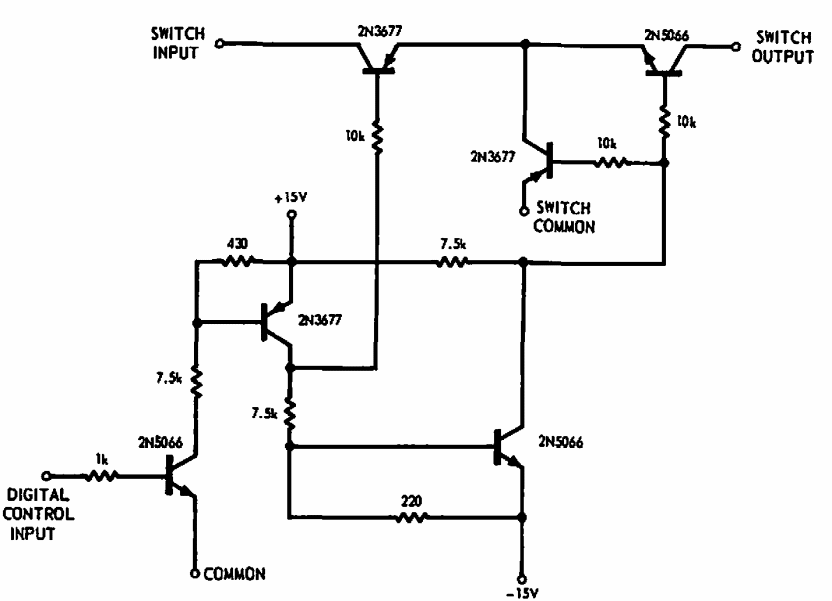

     Found on a 1969 EDN this circuit switches a current from a digital control signal. The impedance of the circuit ON is approximately 10 ohms. Modern equivalent transistors may be used.




| Clique na imagem para ampliar |
