Unijunction ring counter (CB6608E)

Details
Written by: Newton C. Braga

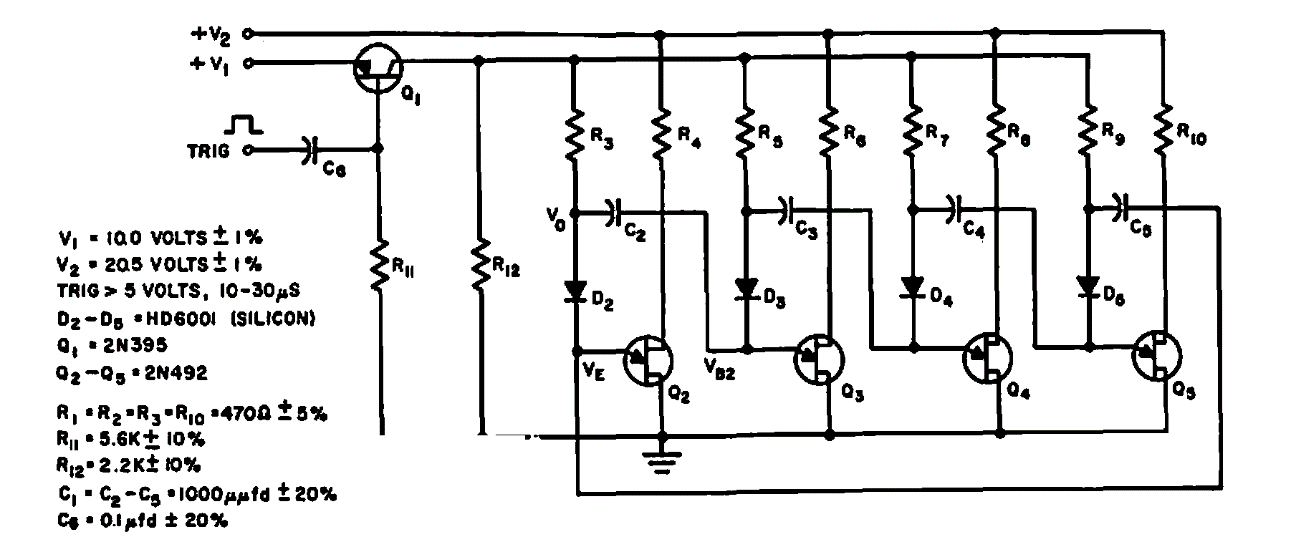

    Found in a 1967 General Electric documentation this circuit uses unijunction transistors that may be equivalent to those indicated. The number of stages can be modified.
