MOSFET Driver (CB7035E)

Details
Written by: Newton C. Braga

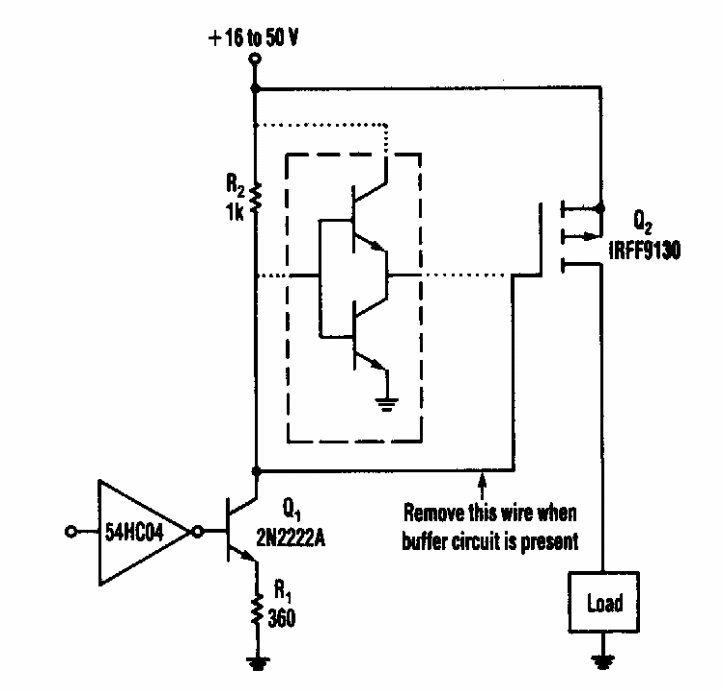

    This circuit was found in an Electronic Design from the 80's. It shows how to use a MOSFET driver with two complementary transistors in an adaptation for a common direct control.
