Optocounter (CB6610E)

Details
Written by: Newton C. Braga

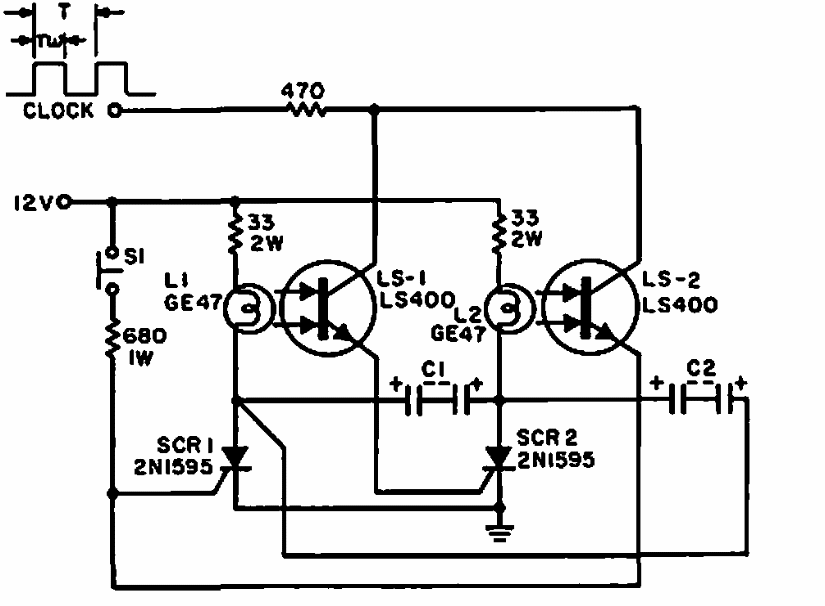

     This optical counter was found in a 1964 Electronics Design. It makes use of an uncommon optocoupler today, using emission lamp and a phototransistor.
