Sine to Square Converter (CB6589E)

Details
Written by: Newton C. Braga

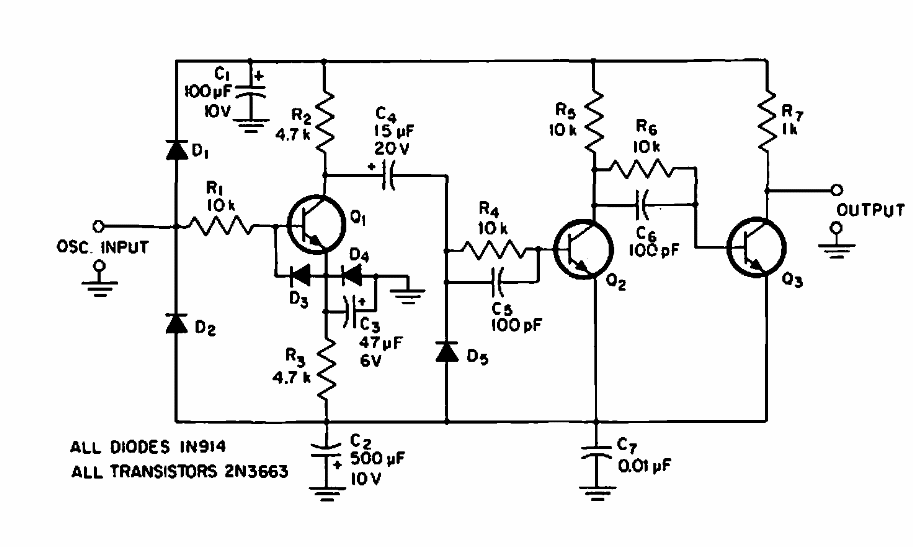

    The main feature of this circuit found in an old American publication is that it is powered by the very signal it converts. The transistors are of the time and can be replaced by current types.
