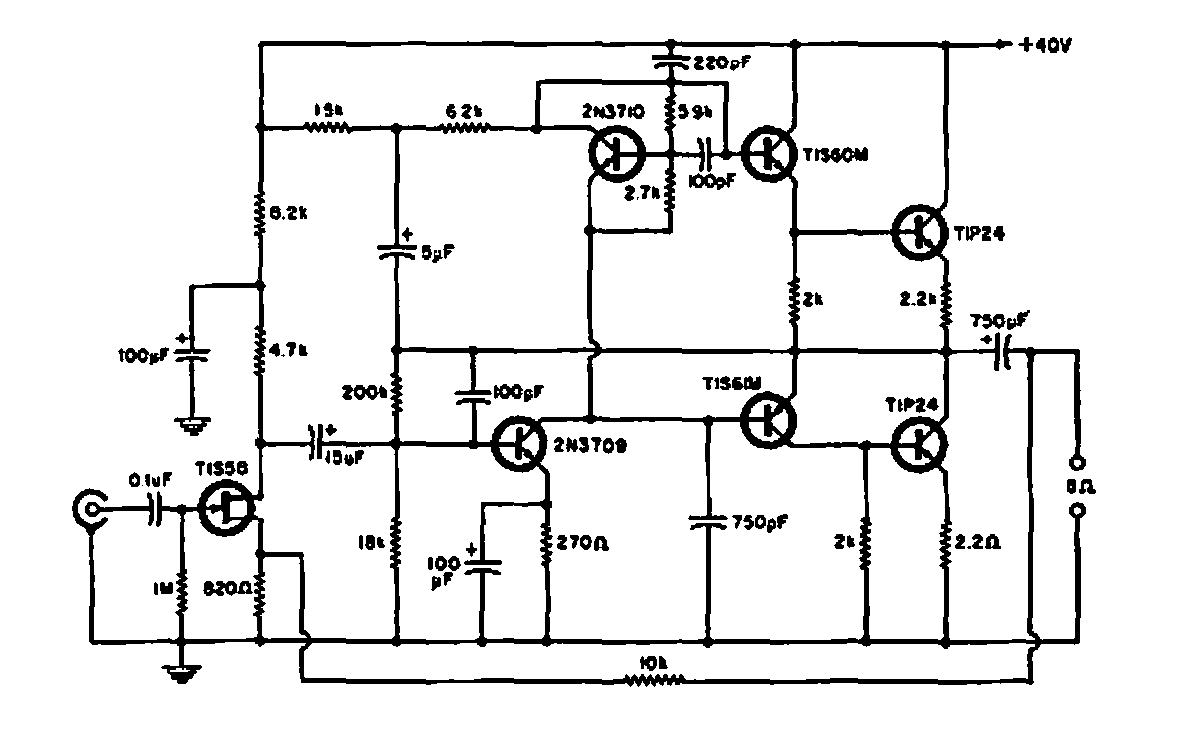

15 W Near Complementary Amplifier (CB6280E)

Details
Written by: Newton C. Braga



    This circuit was found in an Electronics World of 1968, making use of components of the time, not common today. The power supply is not provided.




| Clique na imagem para ampliar |
