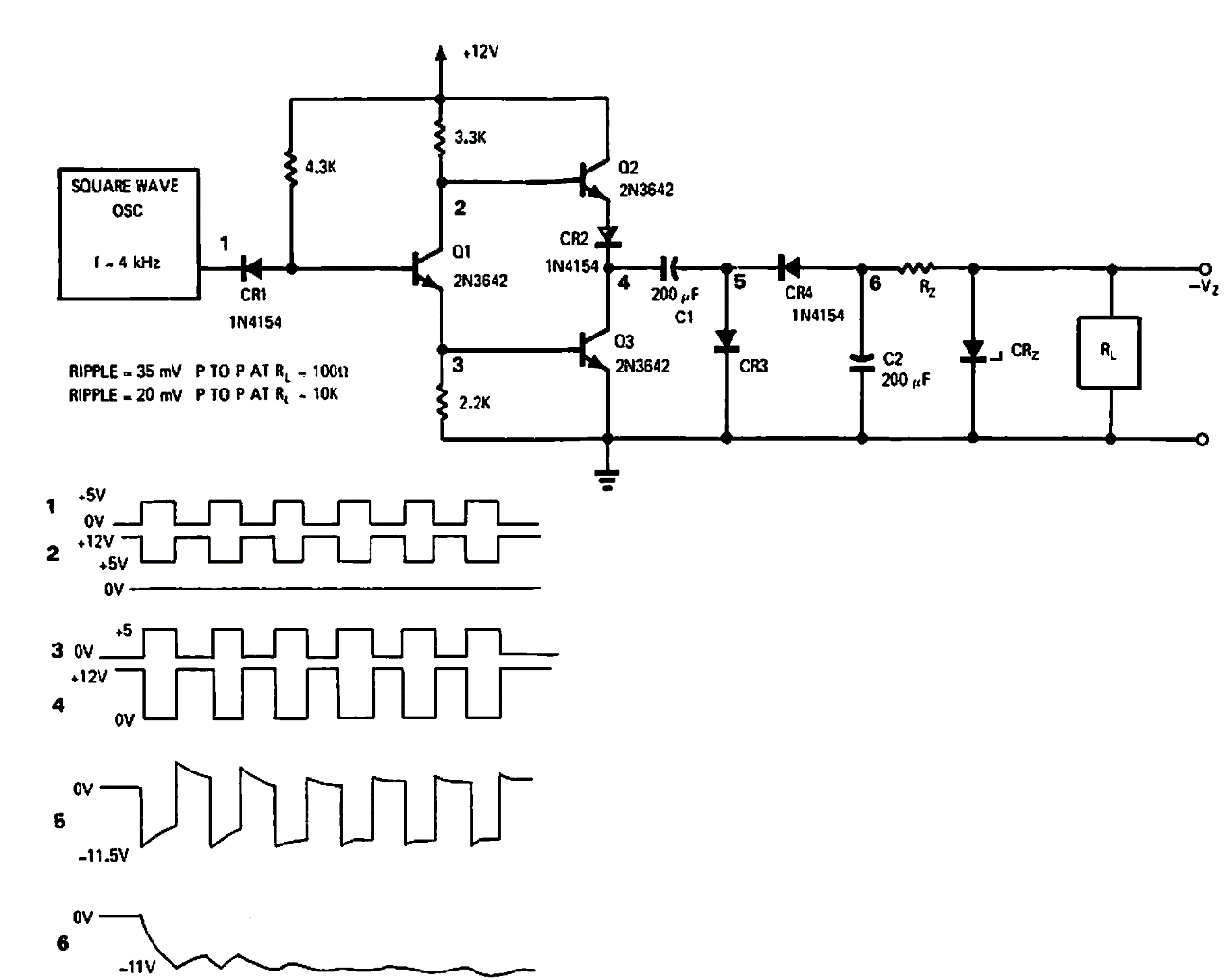

This circuit provides an output voltage with approximately twice the input using two power transistors and a voltage doubler. The circuit is from a 1970 EDN.
| Clique na imagem para ampliar |
Transformerless inverter (CB7258E)
- Details
- Written by: Newton C. Braga
