SCR relaxation flasher (CB6256E)

Details
Written by: Newton C. Braga

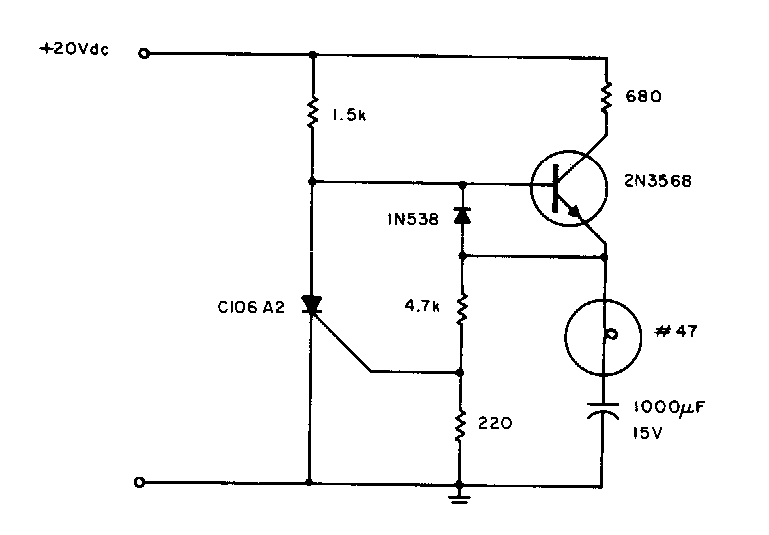

     This SCR relaxation oscillator was found in an 80's Electronic Design. It flashes a small incandescent lamp in frequency that depends on the capacitor.
