300 to 3,000 Hz Speech Filter (CB6543E)

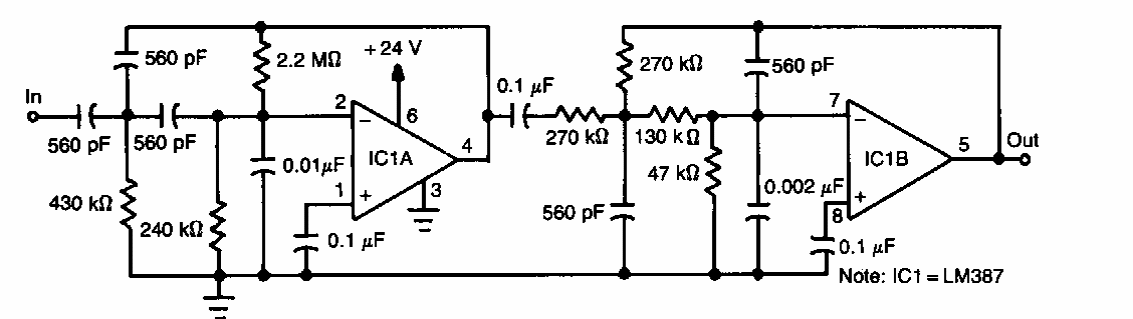

Found on an 80's Radio Electronics, this two-section circuit is designed to pass the frequency range of the human voice.

| Clique na imagem para ampliar |

Sophisticated Regenerative Receiver (CB25691E)
This receiver was found in an article in Electronics Now magazine in March 1994. The coils are...
LM3914 Bargraph Voltmeter with Separate Power Supplies (CB25454E)
This circuit was found in the March 1992 issue of Radio Electronics magazine. The 10-LED circuit has...
15 W Amplifier using the TDA3000 (CB430)
This circuit uses a not easy to find IC these days. The circuit sources 15 W to a 4 ohm load and...
