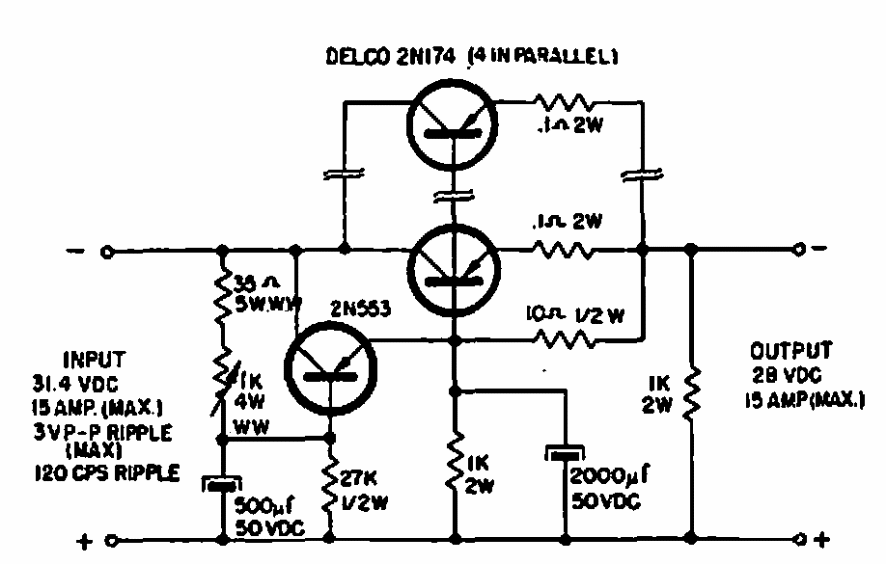

Ripple Filter (CB6724E)

Details
Written by: Newton C. Braga



     This circuit was found in a Delco 1965 publication. Transistors may be current equivalents according to the desired output voltage and current.
