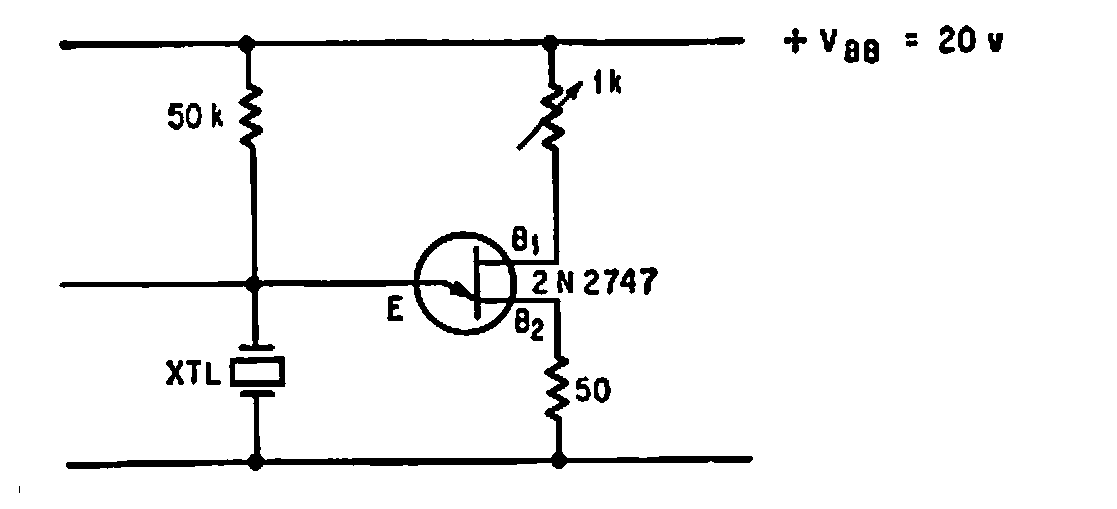

This simple clock can be used to generate signals up to 100 kHz, depending on the crystal. We found it in a 1967 documentation. Note the high supply voltage.
| Clique na imagem para ampliar |
Unijunction Clock (CB6472E)
