Driver for Nixie Tube (CB6682E)

Details
Written by: Newton C. Braga

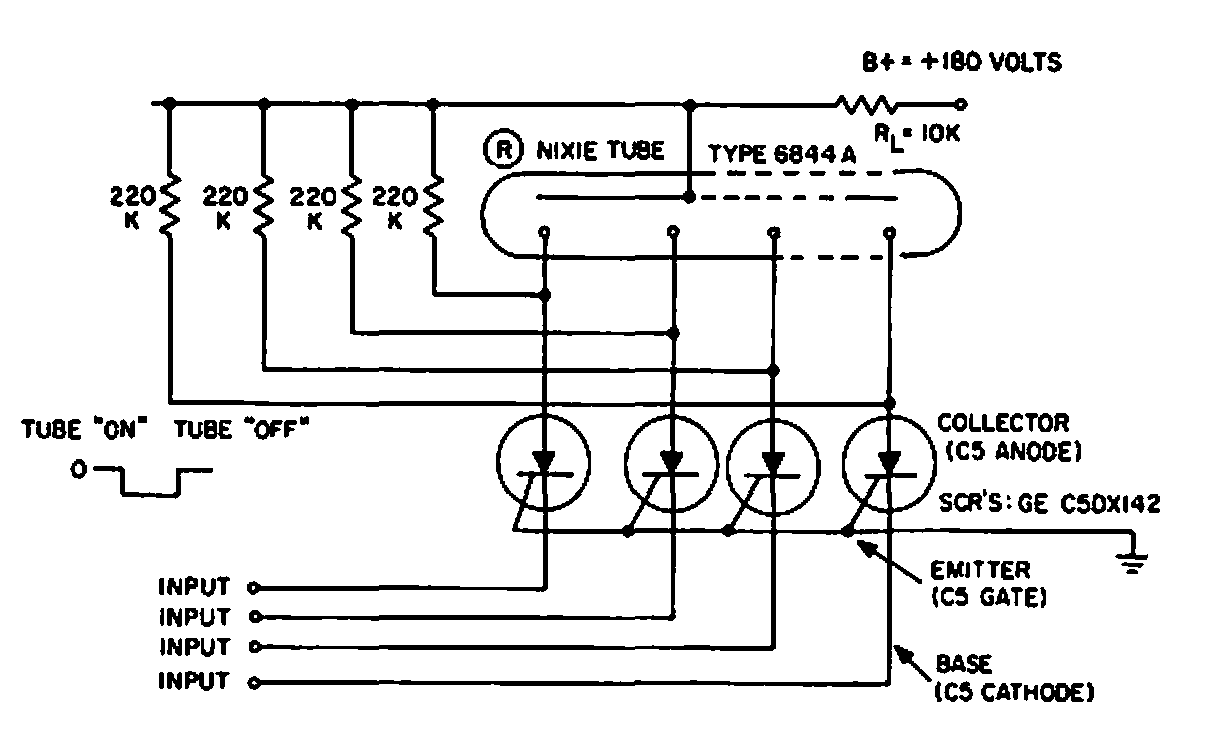

     This circuit was found in a 1967 General Electric manual. It is intended for the control of high voltage Nixie pipes used at the time. SCRs may be equivalent.
