4V Switching for Neon (CB6683E)

Details
Written by: Newton C. Braga

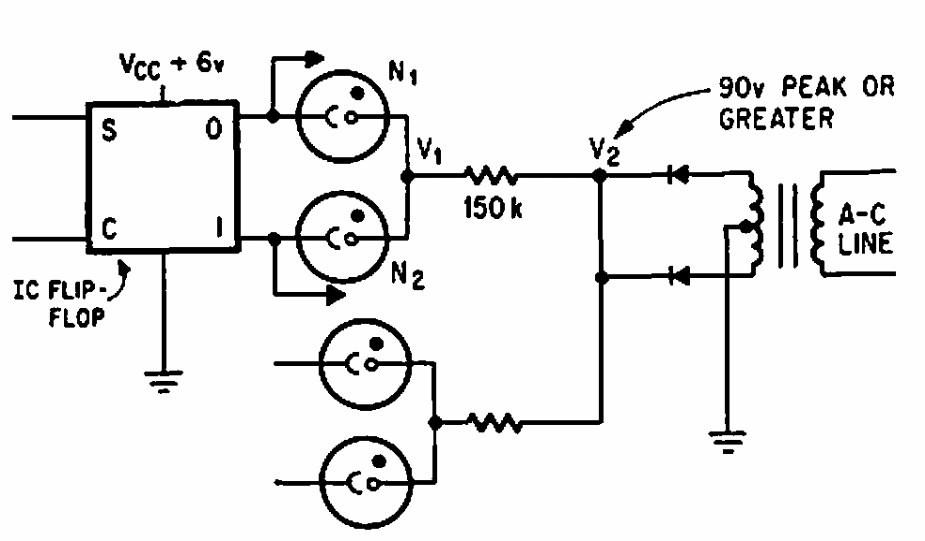

    This diagram from a 1967 documentation shows how to switch high voltage neon lamps with 5V TTL outputs. The circuit can be adapted to function as a shield.




| Clique na imagem para ampliar |
