Function Generator (CB6359E)

Details
Written by: Newton C. Braga

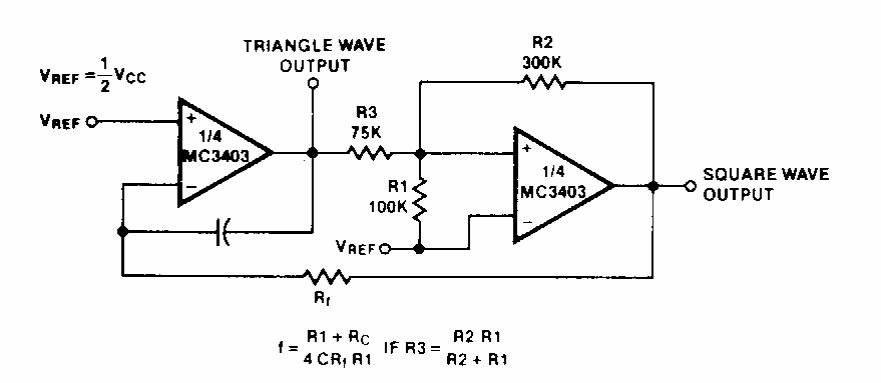

    This circuit is from a 1980s Signetics documentation but is valid for modern operating. Next to the diagram the formulas for the calculation of the components.




| Clique na imagem para ampliar |
