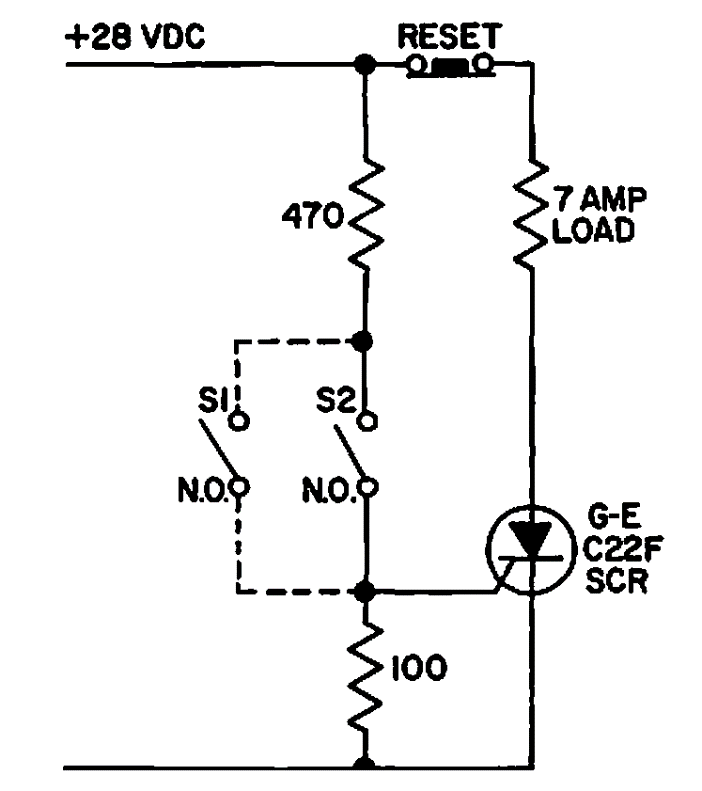

28 V Lock (CB7236E)

This circuit was found in a 1965 General Electric publication. The circuit can be adapted to operate with other voltage lamps.

| Clique na imagem para ampliar |

Wien Bridge Oscillator with the LMV321 (CB4745E)
The LMV321 is a low voltage operational amplifier from ON Semiconductor. The following diagram,...
5 W Amplifier (CB6203E)
This circuit was found in Motorola documentation from 1968. The transistors are from the company,...
Voltage Controlled Oscillator (VCO) (CIR103E)
A simple VCO using two inverters in a ring configuration is shown here. A VCO is a circuit in...
