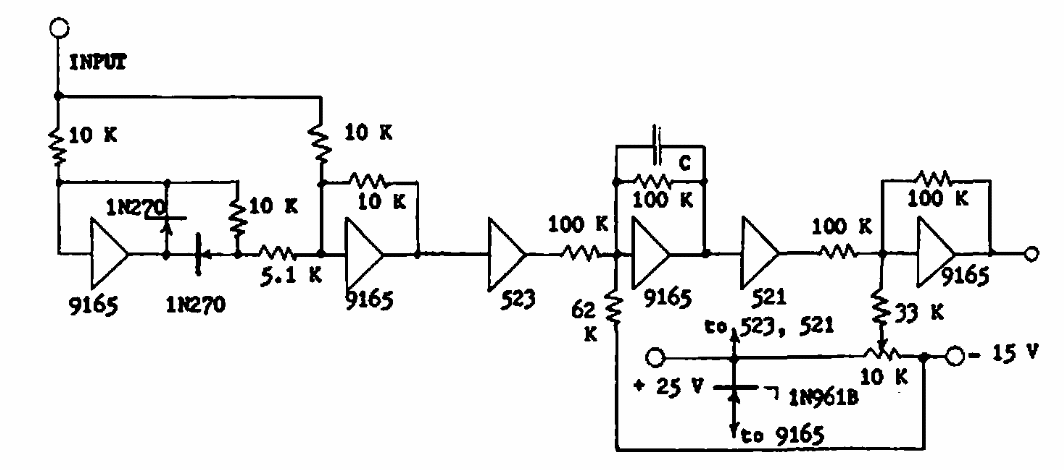

RMS to DC Converter (CB6593E)

Found in older documentation this setting applies to modern components, noting that the power supply must be symmetrical.

| Clique na imagem para ampliar |
