Telegraph Practice Oscillator (CB6474E)

Details
Written by: Newton C. Braga

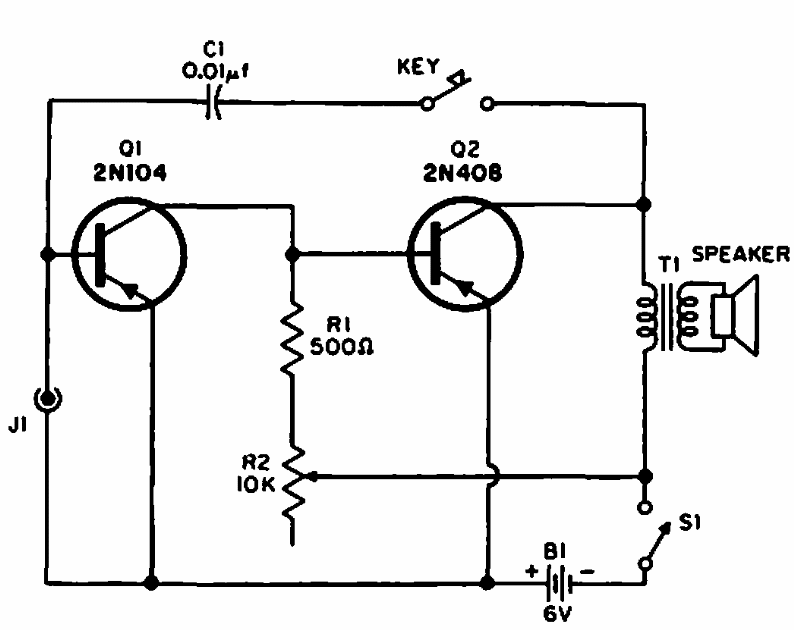

     Found in a 1965 Radio Shack documentation this oscillator can be used with modern general purpose transistors like the BC558. The transformer is the output type for transistor radios.
