Low Frequency Divider (CB6344E)

Details
Written by: Newton C. Braga

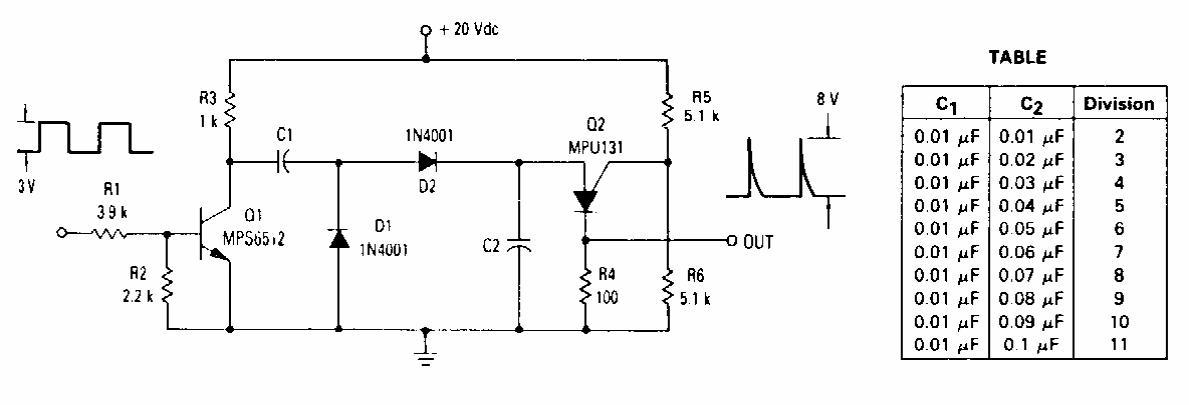

    This circuit was suggested by Motorola in a 1980s publication. It is based on a PUT that is not a common component today. The division depends on the capacitor values according to the table.




| Clique na imagem para ampliar |
