Table dimmer (CB7220E)

Details
Written by: Newton C. Braga

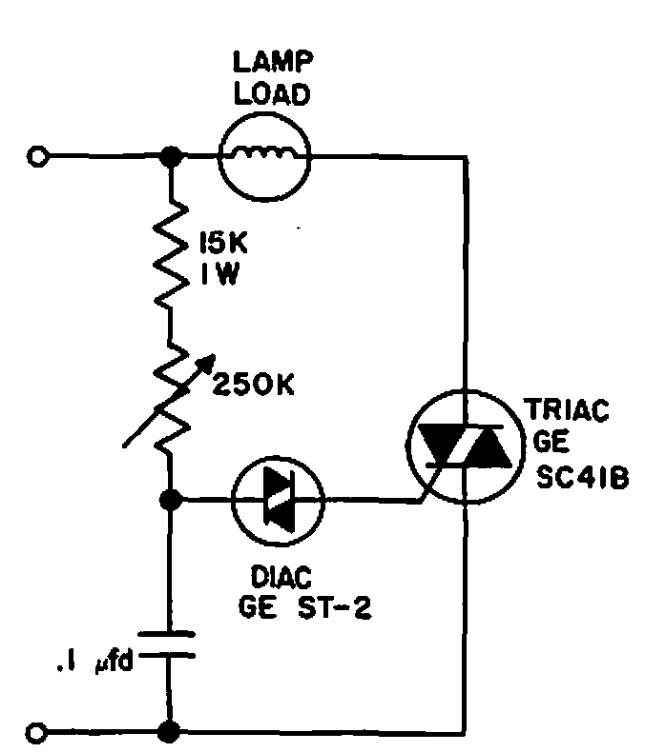

    Found in a 1966 General Electric documentation, this dimmer should only be used with incandescent lamps. The Triac is according to the power of the lamp.
