1 Hz Flasher (CB6796E)

Details
Written by: Newton C. Braga

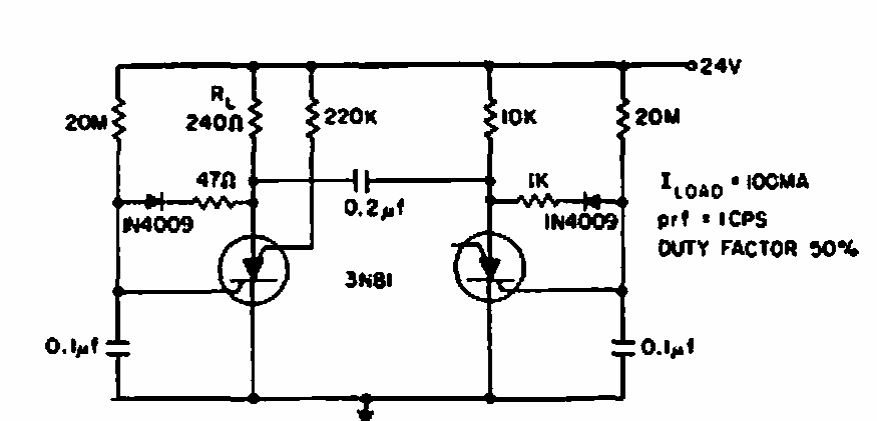

     Found in a 1964 General Electric documentation, this circuit uses PUTs that are not currently common components. By changing the capacitors, the frequency can be changed.
