12V Charger (CB6399E)

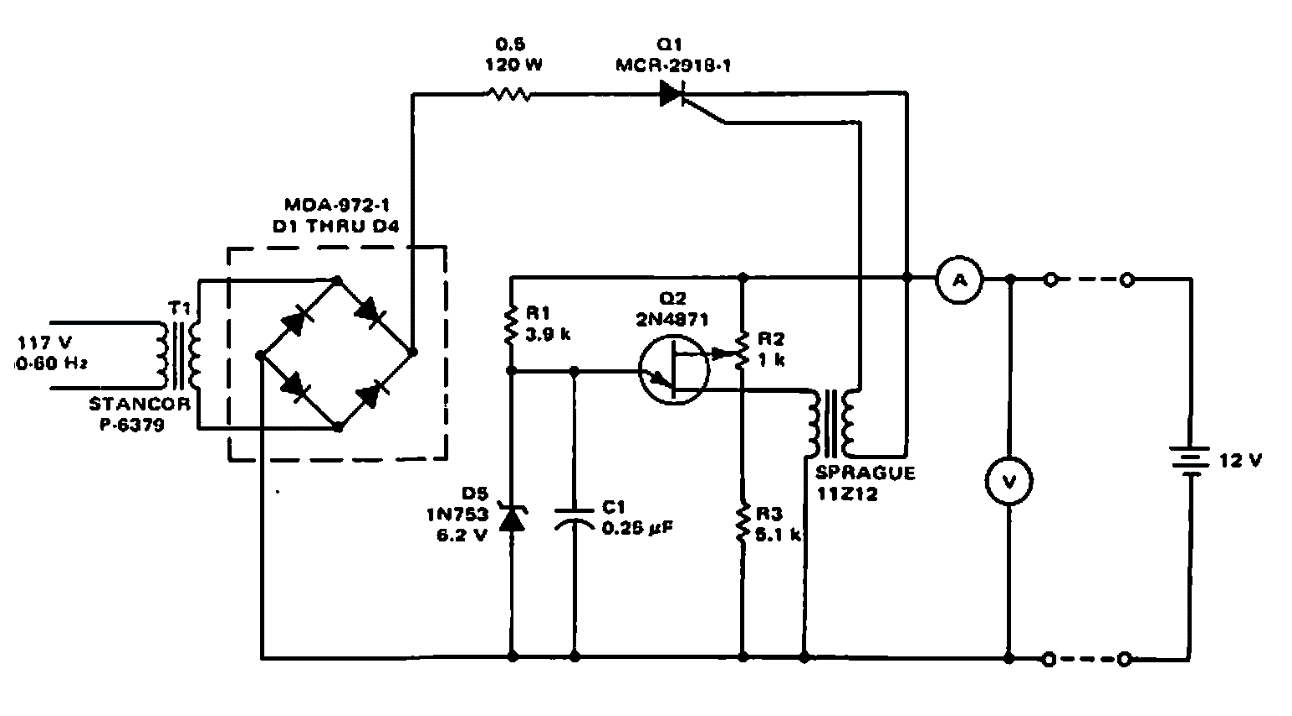

We found this circuit in a 1968 Motorola publication. The circuit has a charge current of 16 A which determines the current of the transformer.
