Anti Theft For Car (CB6328E)

Details
Written by: Newton C. Braga

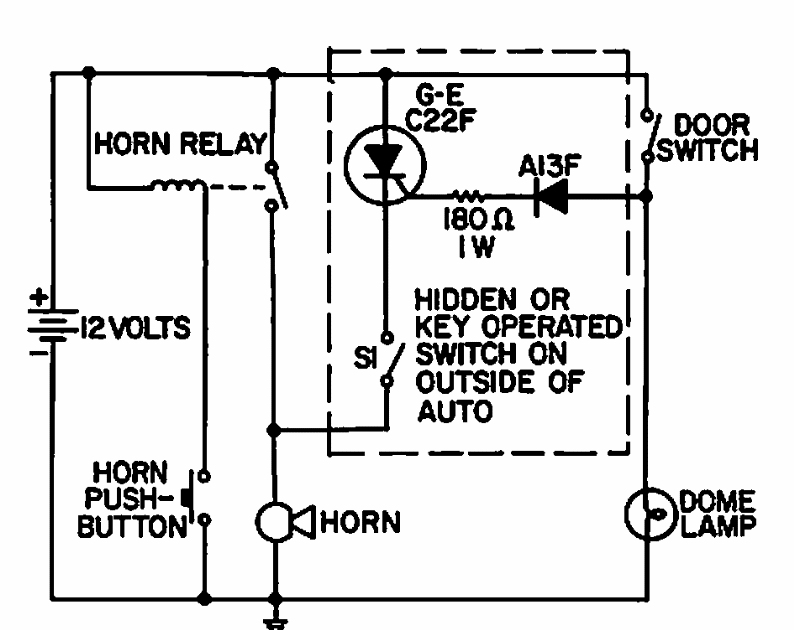

    We found this circuit in a 1968 General Electric publication. The circuit uses an SCR of the time, but any modern equivalent can be used. The relay must have contacts that support the horn current.




| Clique na imagem para ampliar |
