Indicator without lock (CB6685E)

Details
Written by: Newton C. Braga

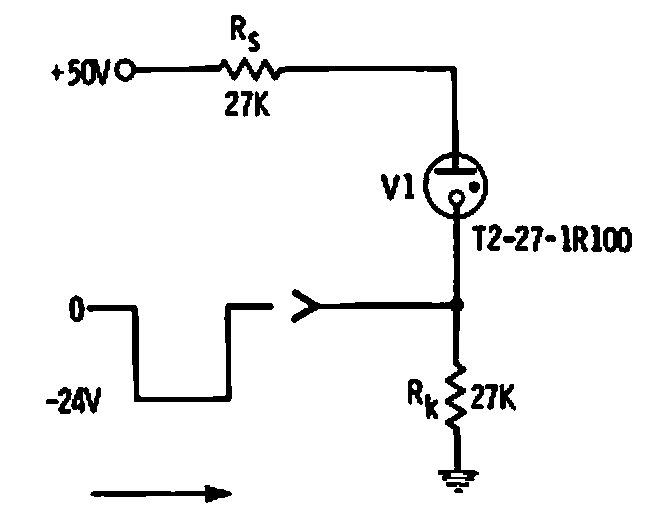

   Obtained from a 1969 neon lamp documentation, this circuit shows how to assemble an indicated circuit triggered by - 24V pulses. The neon lamp is of the era type.




| Clique na imagem para ampliar |
