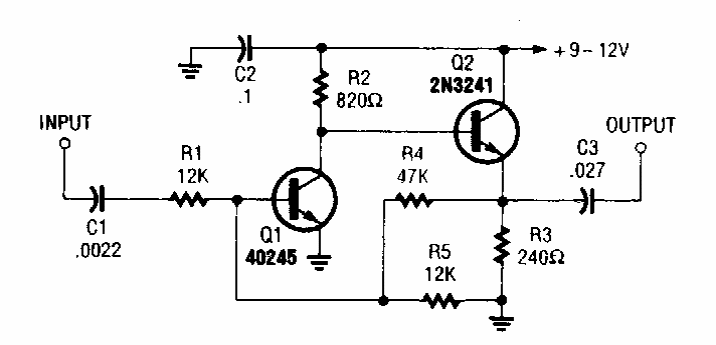

Amplifier and buffer (CB7138E)

Details
Written by: Newton C. Braga



     Found in a Popular Electronics from the 90s, this circuit can be made with current equivalent transistors.
