Metronome 2 (CB7287E)

Details
Written by: Newton C. Braga

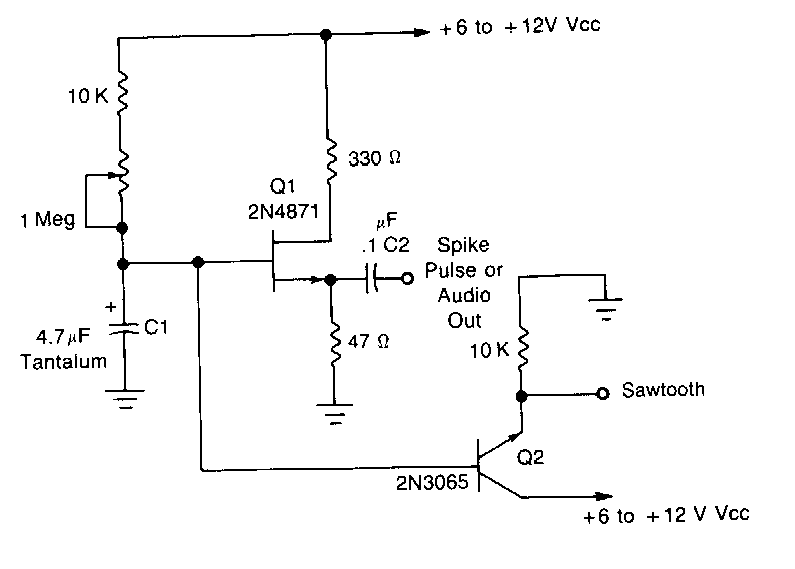

     Found in old documentation, this circuit can use modern equivalent components. The signal has good strength thanks to the use of a power transistor. The Q1 transistor is a unijunction of the time.
