Avalanche Oscillator (CB7112E)

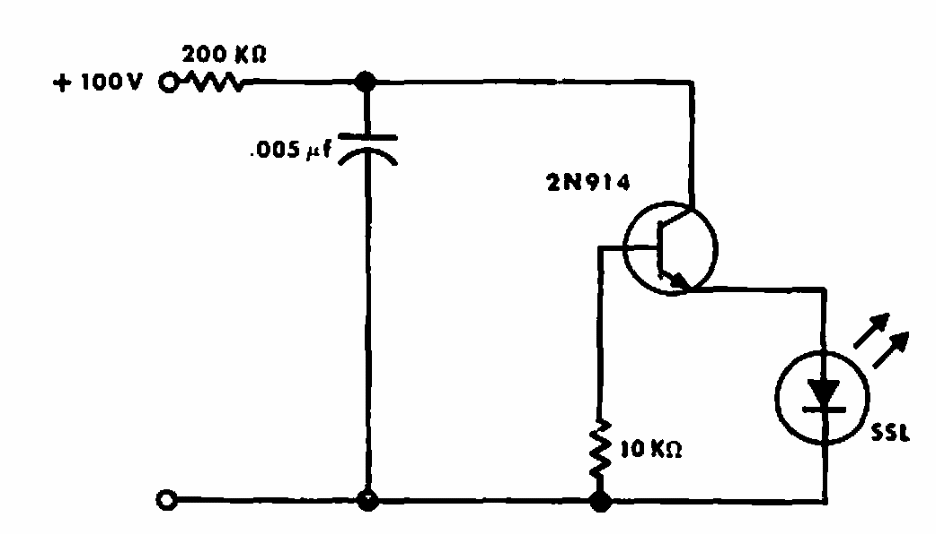

Found in a General Electric documentation from 1970, this circuit consists of a relaxation oscillator that uses a transistor from that time.

| Clique na imagem para ampliar |

Battery Charger LM317 (CB14307E)
The circuit presented was found in the National Semiconductor Linear Applications Handbook. The...
Frequency Modulated Siren 555 CMOS (CB15868E)
With the circuit shown in the figure we have a frequency modulation which is produced by a...
900 MHz Amplifier THS3491 Using Single Source (CB19657E)
The configurations of the two previous circuits can be modified to operate with a simple power...
