12V x 5 A Charger (CB6402E)

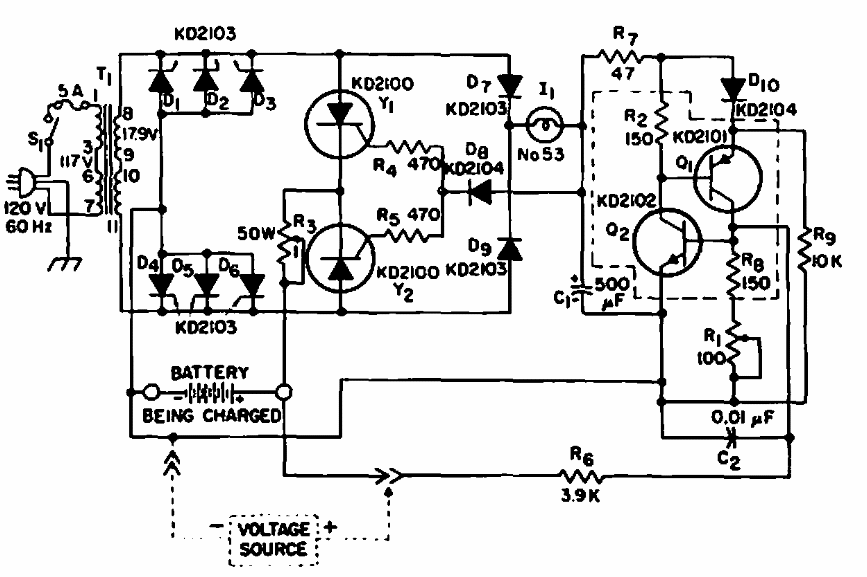

Taken from a 1967 RCA publication, this circuit maintains a low current in the battery when it is charged. The components are from the era.
