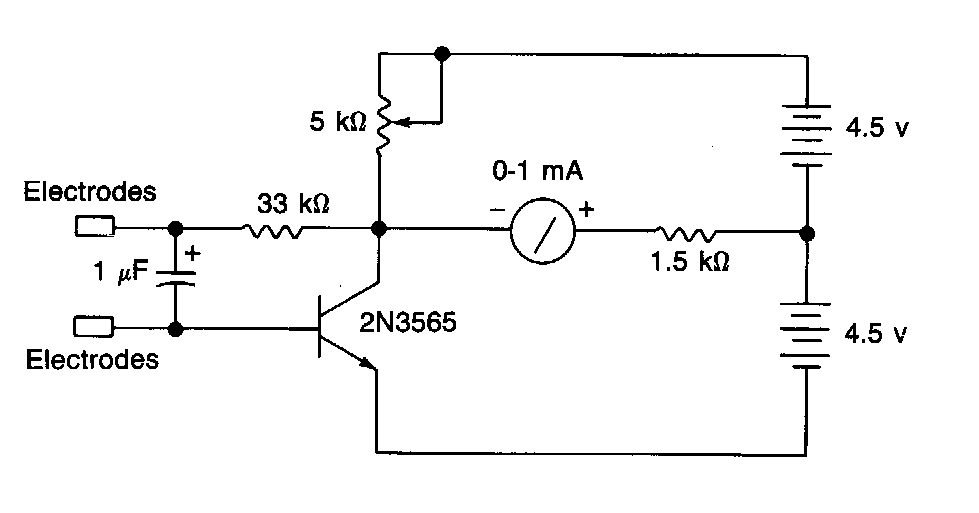

This circuit is from an 80's technical newsletter. The circuit can use any general purpose transistor and its power supply can be changed with a resistive divider to use a single 9V battery.
| Clique na imagem para ampliar |
Lie Detector (CB6363E)
