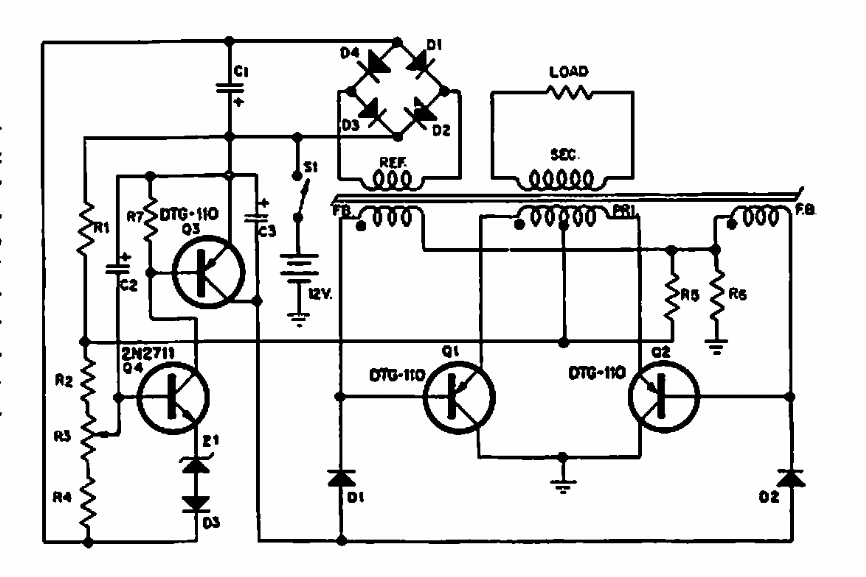

10 W 12 x 115 VA inverter 10W (CB7297E)

This circuit was found in Delco documentation from 1966. The components are from that time. Information on the transformer winding is not provided.
