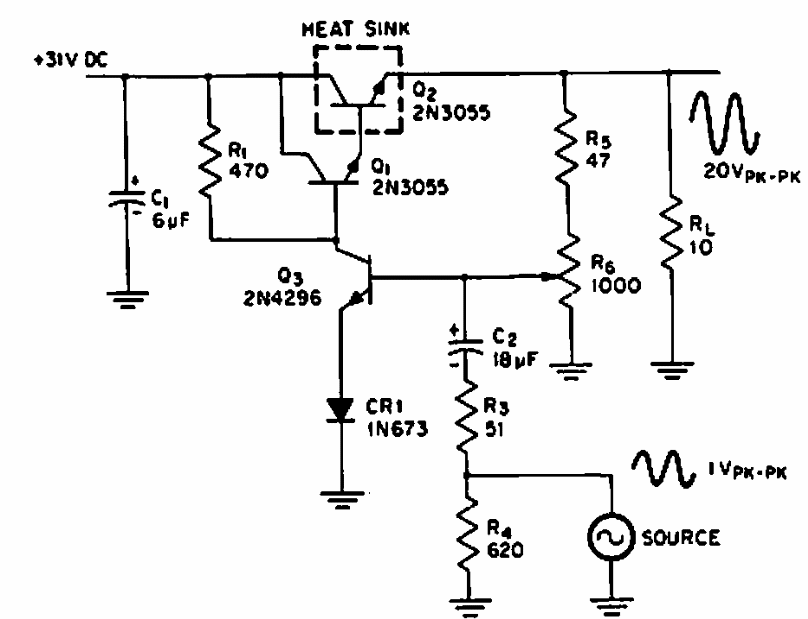

This circuit was found in a 1970 US publication. Transistors are still common and the circuit can be used as a PWM shield or pulse transmission modulator.
| Clique na imagem para ampliar |
Modulated Voltage Regulator (CB6292E)
- Details
- Written by: Newton C. Braga
