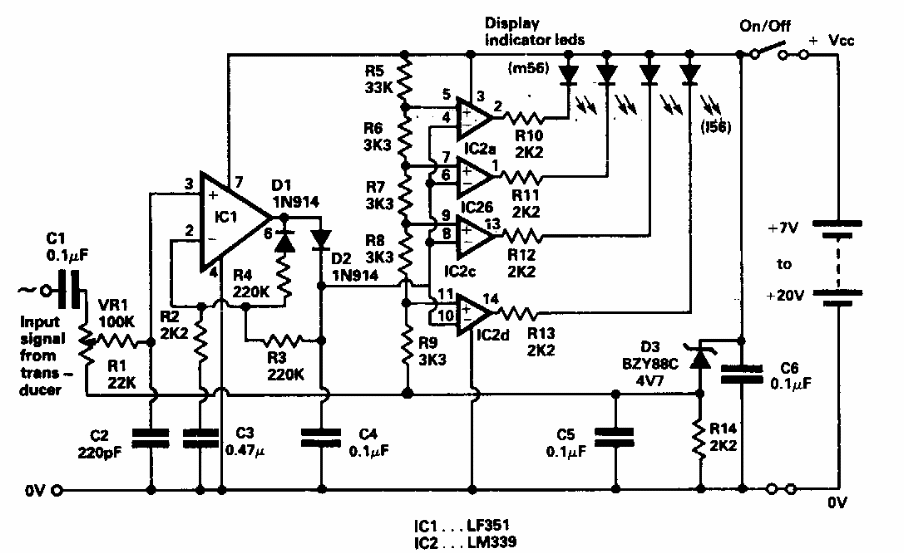

This circuit is from an 80's Electronic Engineering. The base is a common operating and 4 single integrated voltage comparators. The circuit directly drives 4 indicator LEDs.
| Clique na imagem para ampliar |
AC Signal Bargraph (CB6218E)
- Details
- Written by: Newton C. Braga
