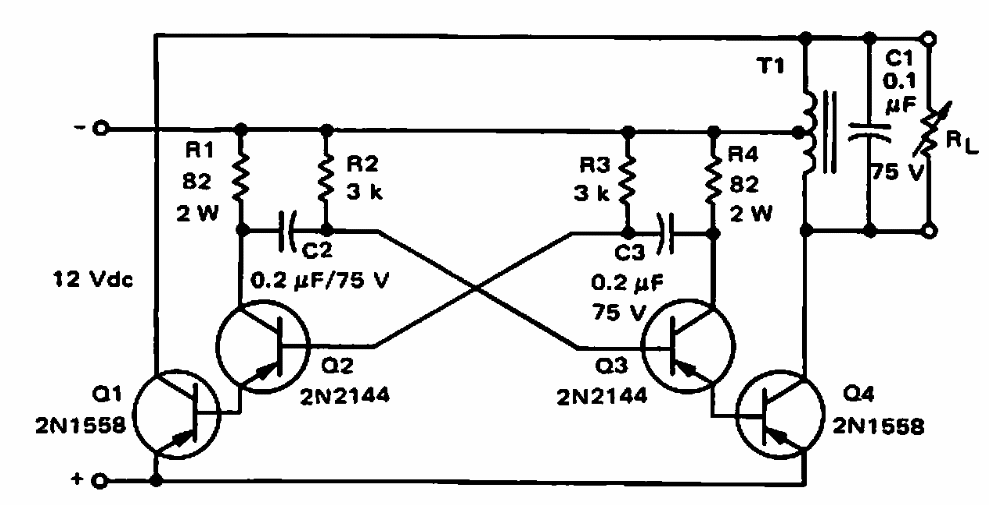

Found in a 1968 Motorola documentation, this circuit operates at 1 kHz and can deliver 20 V from 12 V. Transistors support modern equivalents.
| Clique na imagem para ampliar |
20 V AC x 50 W inverter (CB7120E)
- Details
- Written by: Newton C. Braga
Found in a 1968 Motorola documentation, this circuit operates at 1 kHz and can deliver 20 V from 12 V. Transistors support modern equivalents.
