Locked Triac (CB7238E)

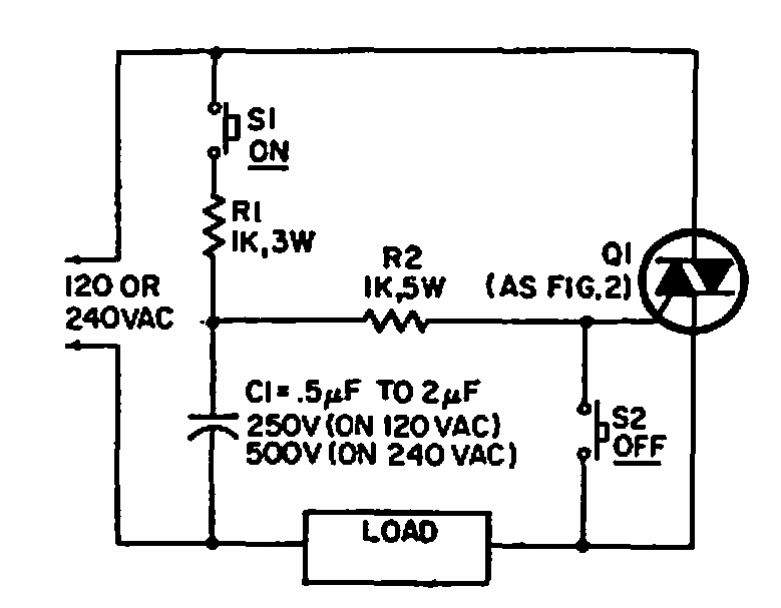

This is a circuit found in a 1970's Radio Electronics. The circuit works with virtually any triac that must match the load.

| Clique na imagem para ampliar |
