Diode match circuit (CB7379E)

Details
Written by: Newton C. Braga

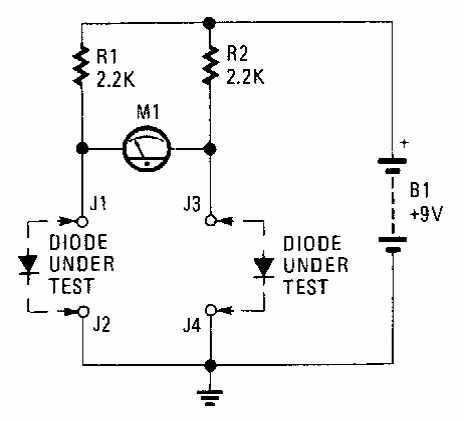

    This circuit allows you to find two diodes with equal characteristics. The circuit was found in a Popular Electronics from the 90s.
