Field strength meter (CB7356E)

Details
Written by: Newton C. Braga

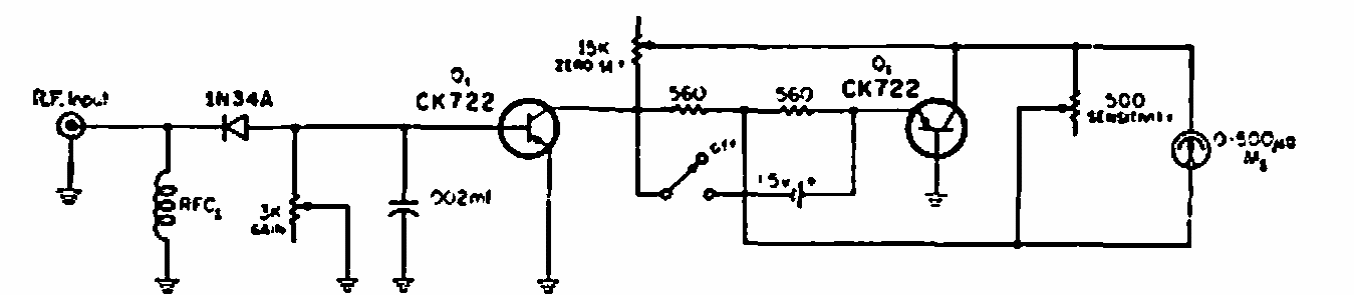

     This untuned circuit uses one of the world's first commercial transistors, the CK722, having been found in a 1966 publication. Equivalent modern types can be used.




| Clique na imagem para ampliar |
