Infinite Impedance (CB6154E)

Details
Written by: Newton C. Braga

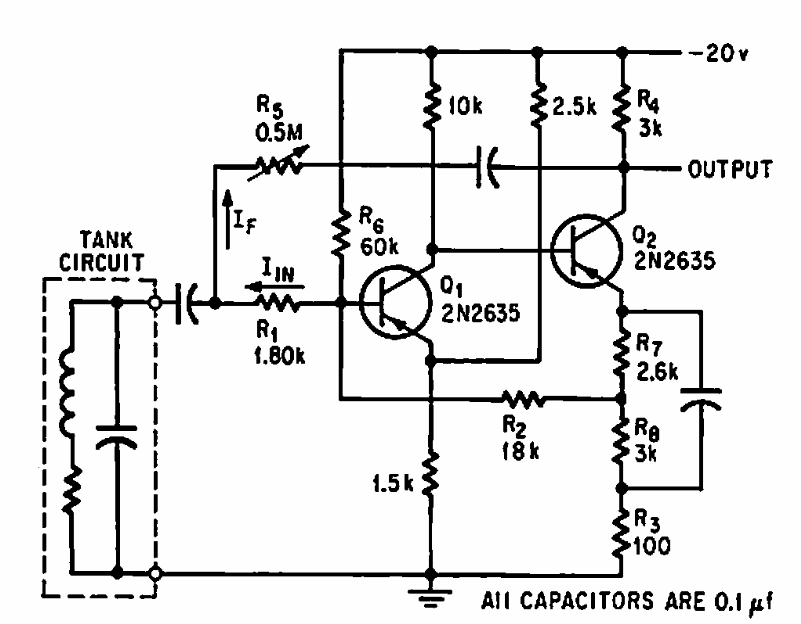

     This circuit is from an American 1967 documentation and can be implemented with modern equivalent transistors. The circuit serves as a Q multiplier.
