Flip Flop for Nixie Tube (CB6689E)

Details
Written by: Newton C. Braga

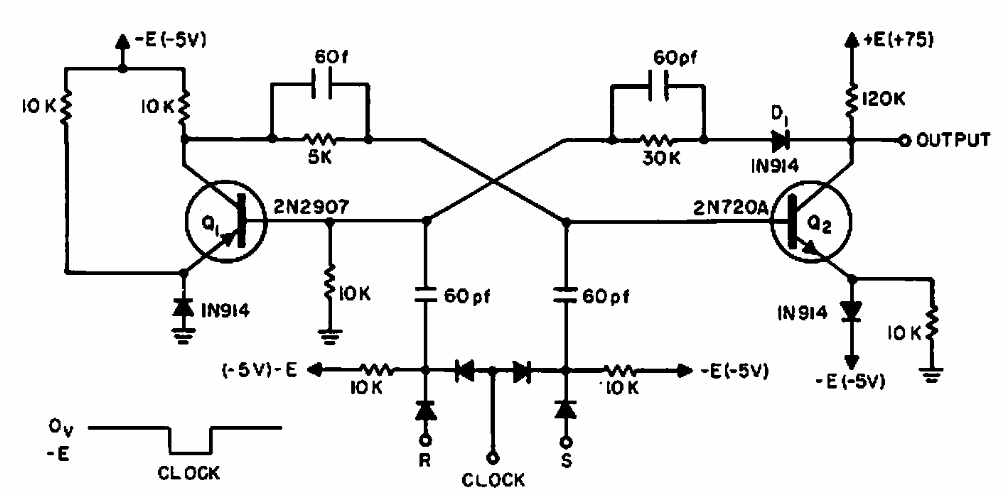

    Found in a 1965 Electronic Design, this high voltage circuit uses period transistors. Its purpose was to excite Nixie display tubes common at the time.
