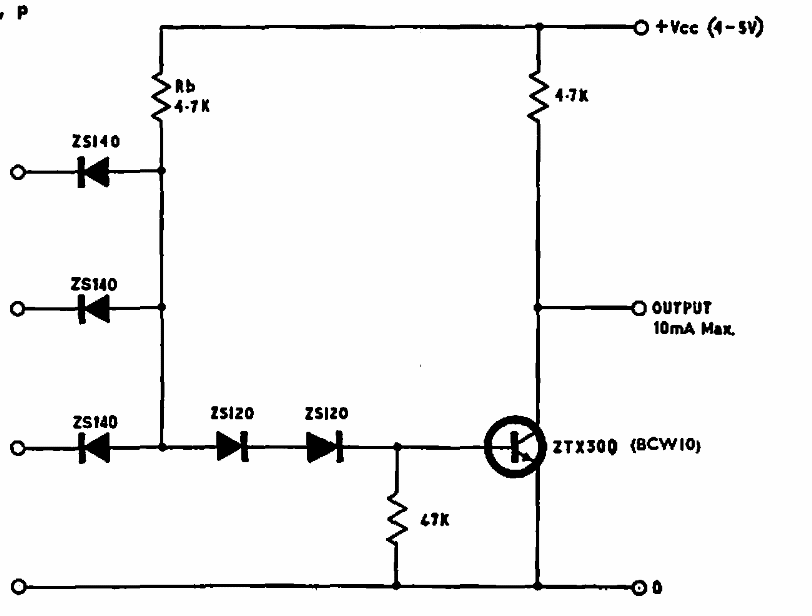

DTL NOR gate (CB6922E)

This circuit was found in a 1969 Ferranti documentation. It can be implemented with modern equivalent transistors and diodes.

| Clique na imagem para ampliar |
