Gain 150 000 amplifier (CB6636E

Details
Written by: Newton C. Braga

)

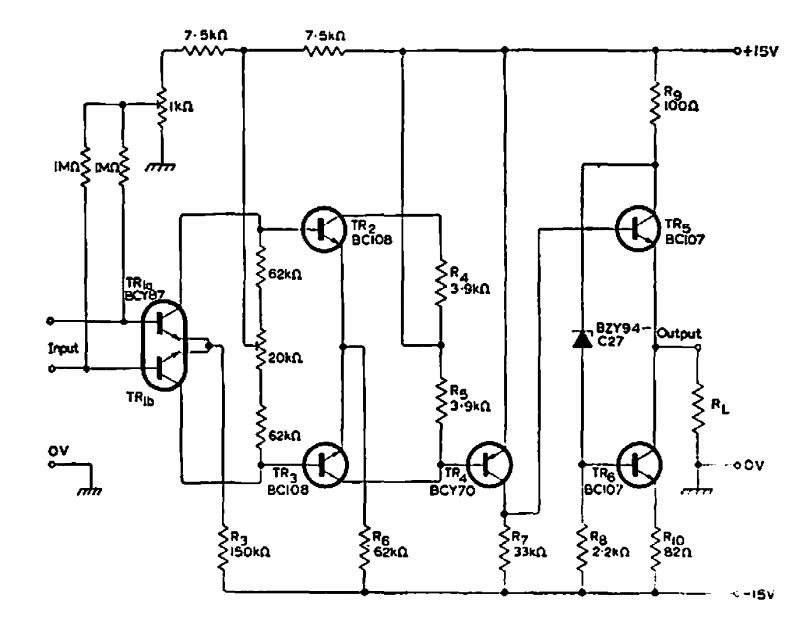

    Suggested by Philips in a 1968 documentation this circuit has very high 10 ohm on-load voltage gain with 20 mA current. The transistors are of the time and a married pair should be worn at the entrance.




| Clique na imagem para ampliar |
