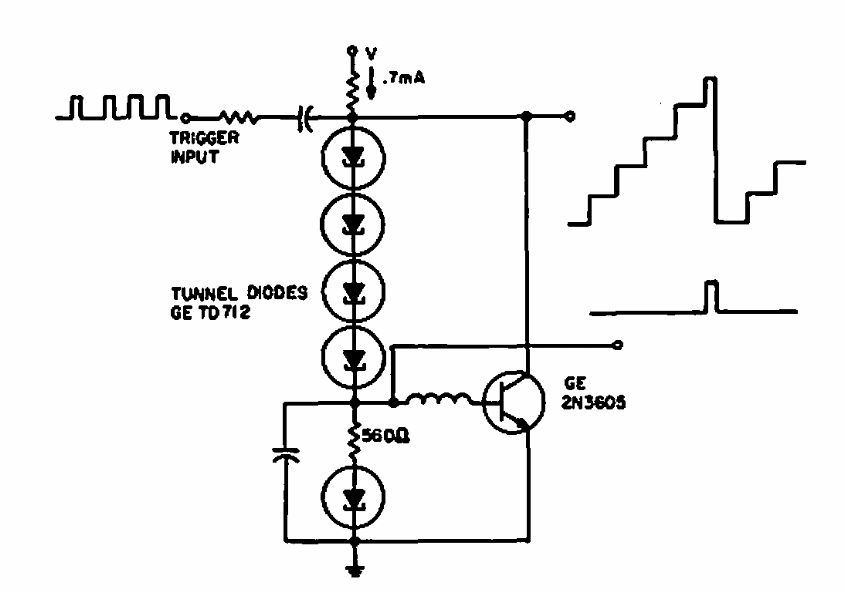

Found in a 1967 General Electric documentation, this circuit generates a ladder signal from rectangular signals. The used components are uncommon today.
| Clique na imagem para ampliar |
Tunnel diode divider (CB6823E)
