6 500 Gain Amplifier (CB6642E)

Details
Written by: Newton C. Braga

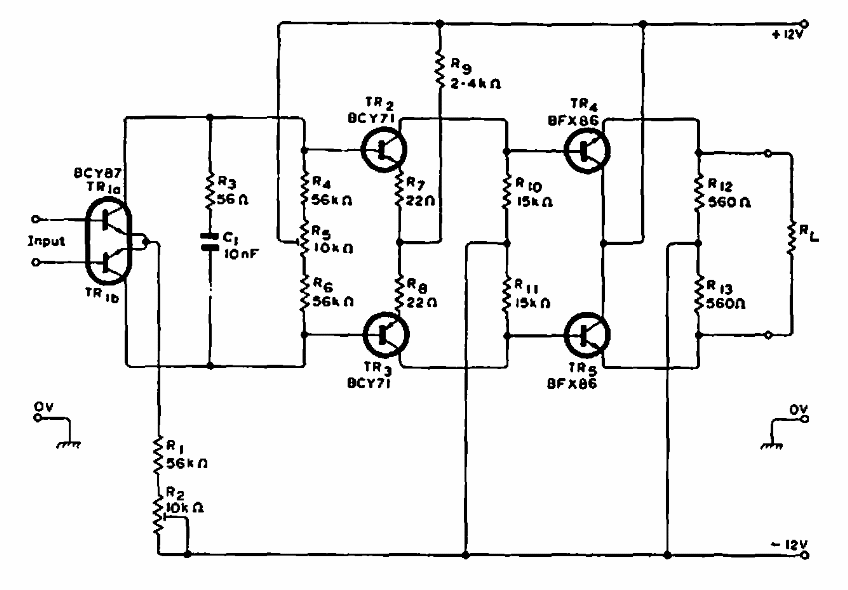

     Found in Philips documentation from 1968 this circuit operates at frequencies up to 10 MHz with 76 dB gain. The double transistor can be replaced by a matched pair.






| Clique na imagem para ampliar |
