Logic Trigger (CB6602E)

Details
Written by: Newton C. Braga

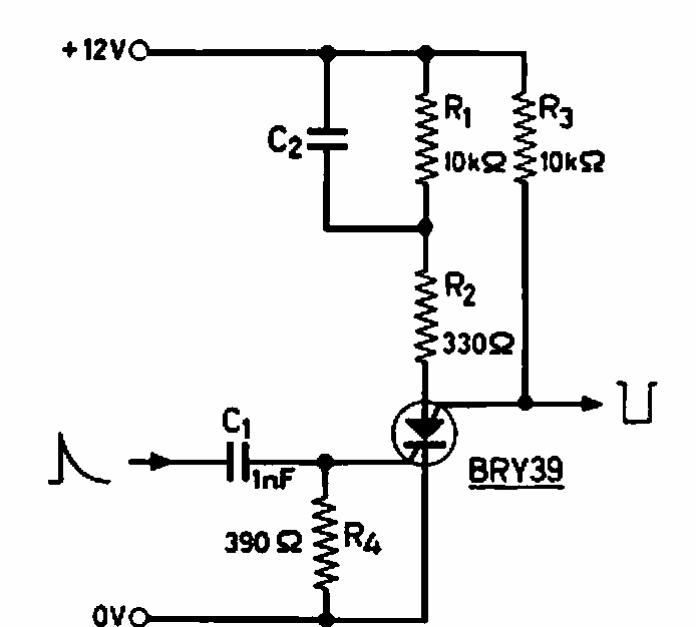

     The purpose of this 1967 Philips circuit is to produce a rectangular signal from a sharp pulse. The circuit makes use of an unusual component today as a base.




| Clique na imagem para ampliar |
